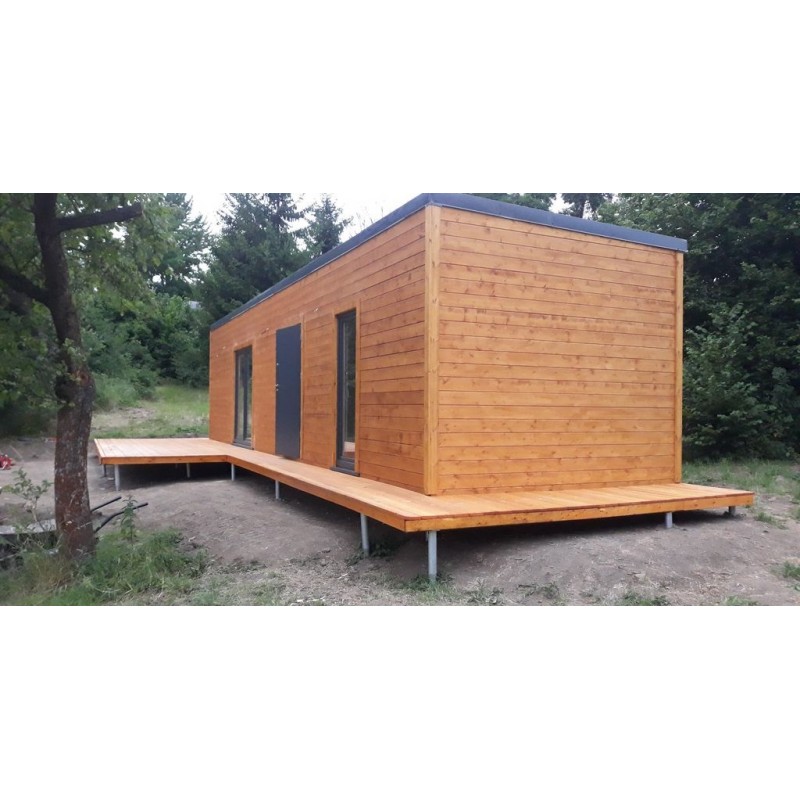

Modular house 3-room

Modular house 12 x 3.3 x 3 m

Internal height 2.6 m

Steel frame, welded from 3 and 4 mm thick profiles with 8 welded corner elements with holes for handling. The steel frame is provided with anti-corrosion coating.

Standard insulation (floor / walls / ceiling): 150 mm.

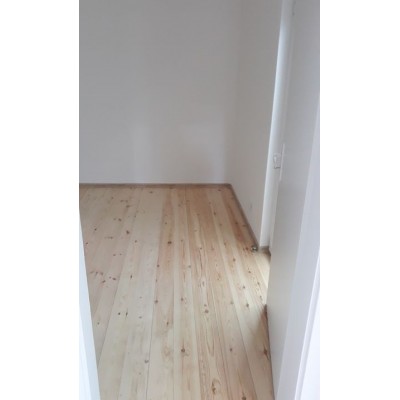

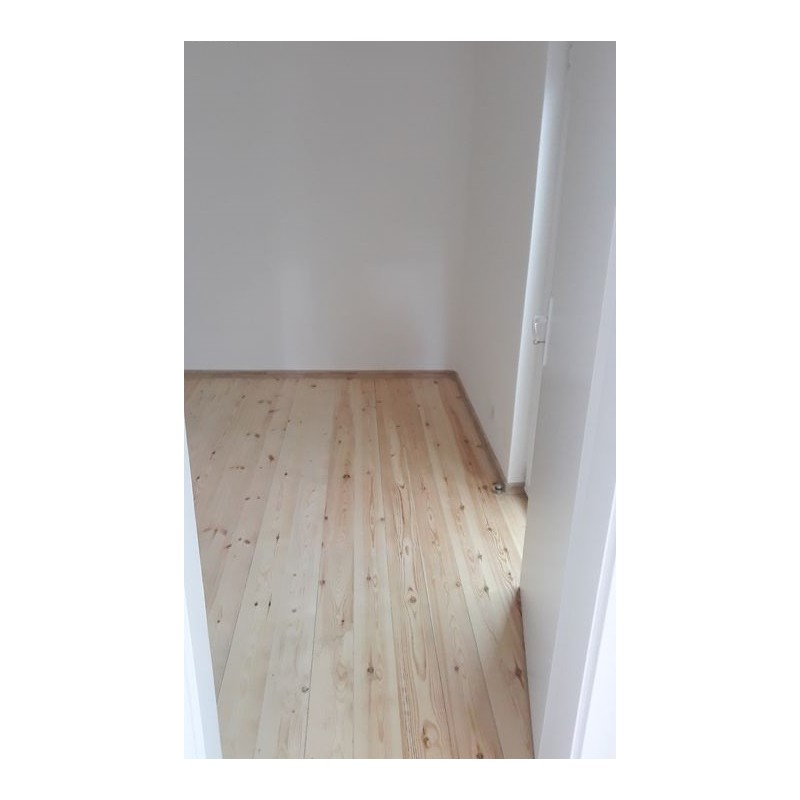

Floor: galvanized sheet metal th. 0.55 mm inserted into a steel frame, basalt wool th. 150 mm, PE foil, wooden floors (35 mm).

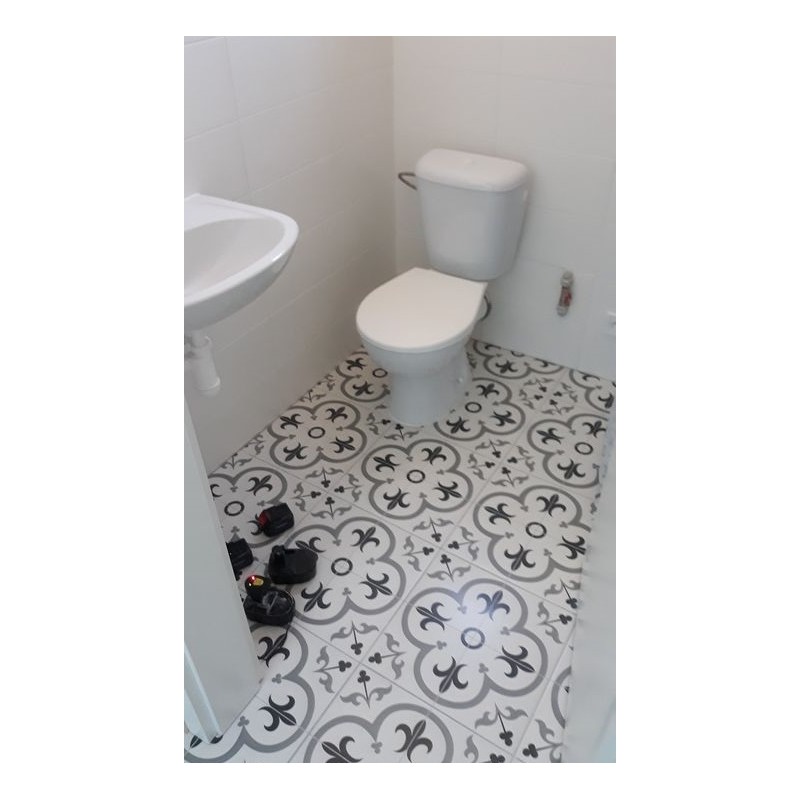

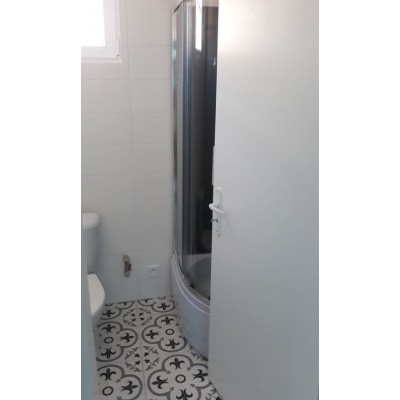

Load capacity (load) of the floor: standard 250 kg / m2. In the bathroom and in the hall at the main entrance tiles.

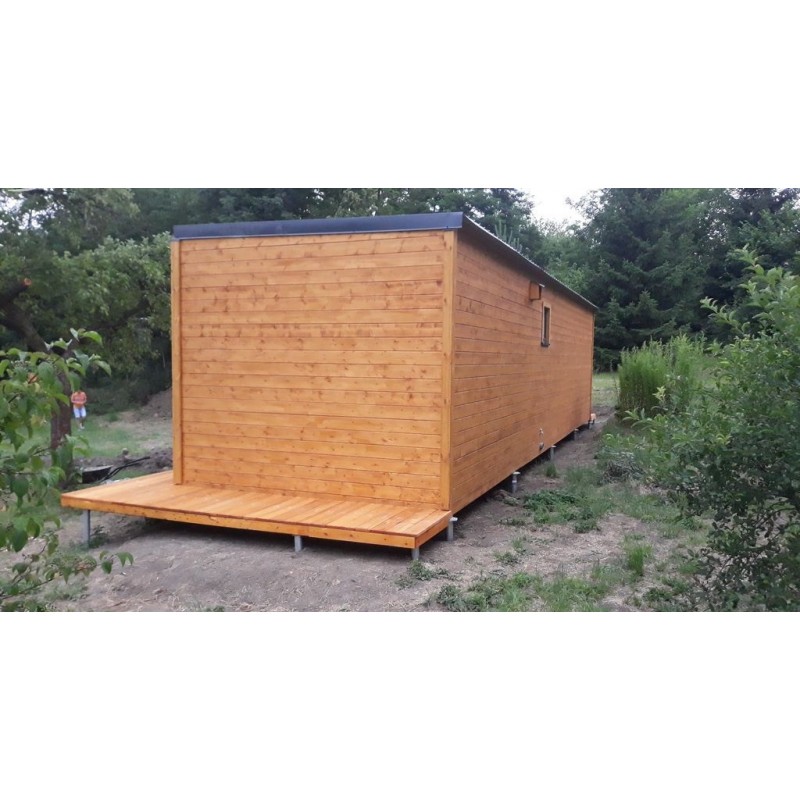

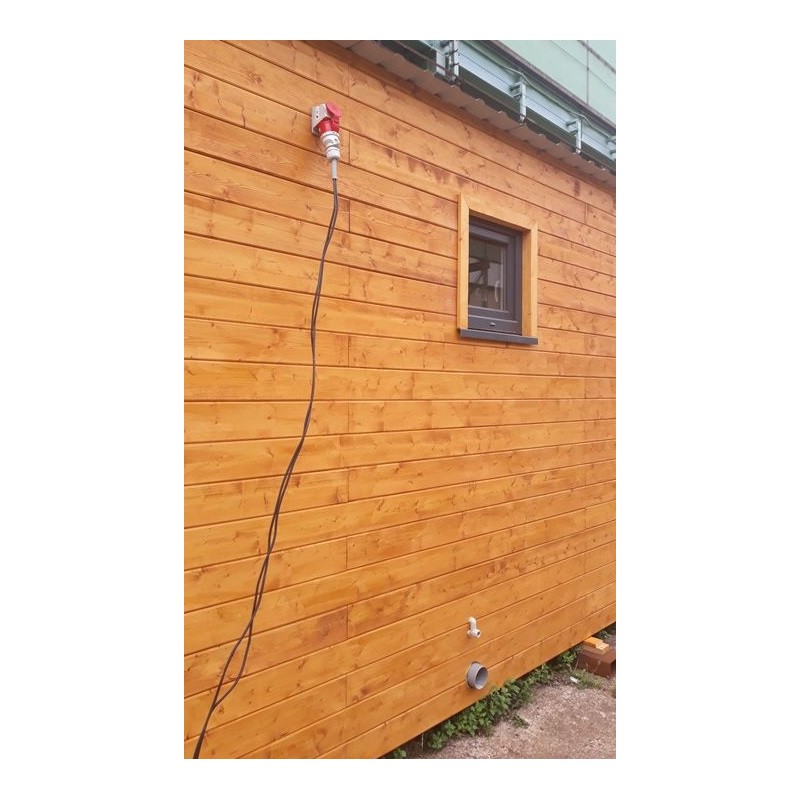

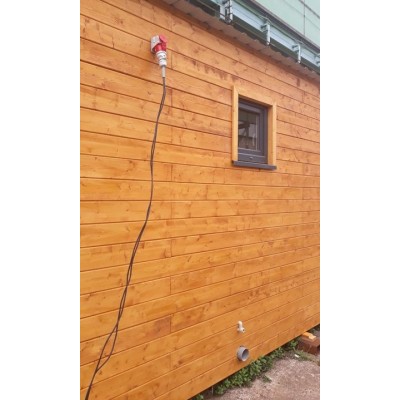

Walls: outside wooden wall paneling, basalt wool th. 150 mm, PE foil, inside plasterboard and wallpaper.

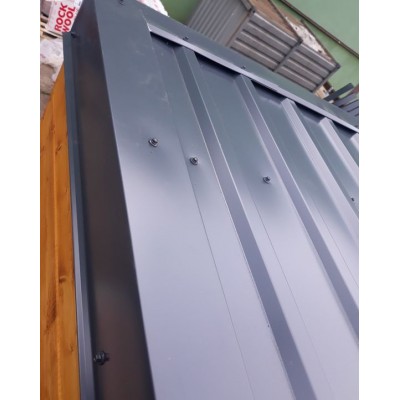

Roof: outside galvanized trapezoidal sheet metal th. 1 mm, basalt wool th. 150 mm, PE foil, plasterboard and wallpaper inside ..

Exterior entrance door, galvanized sheet metal, solid, thermally insulated.

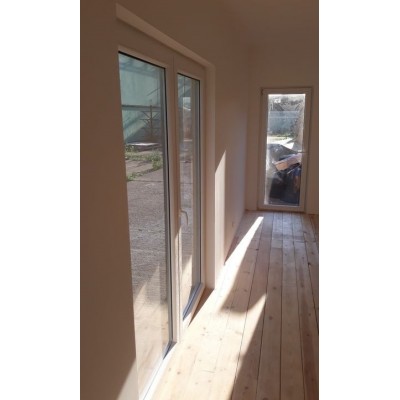

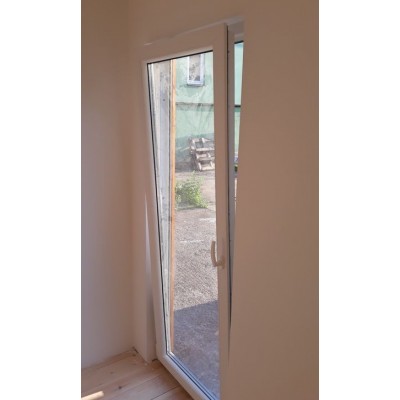

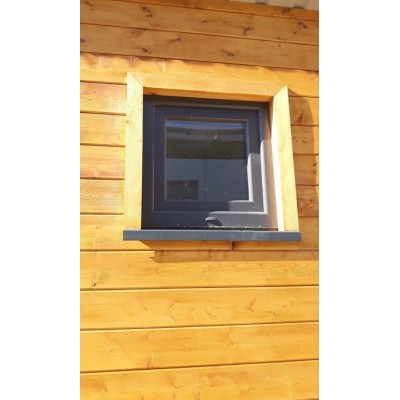

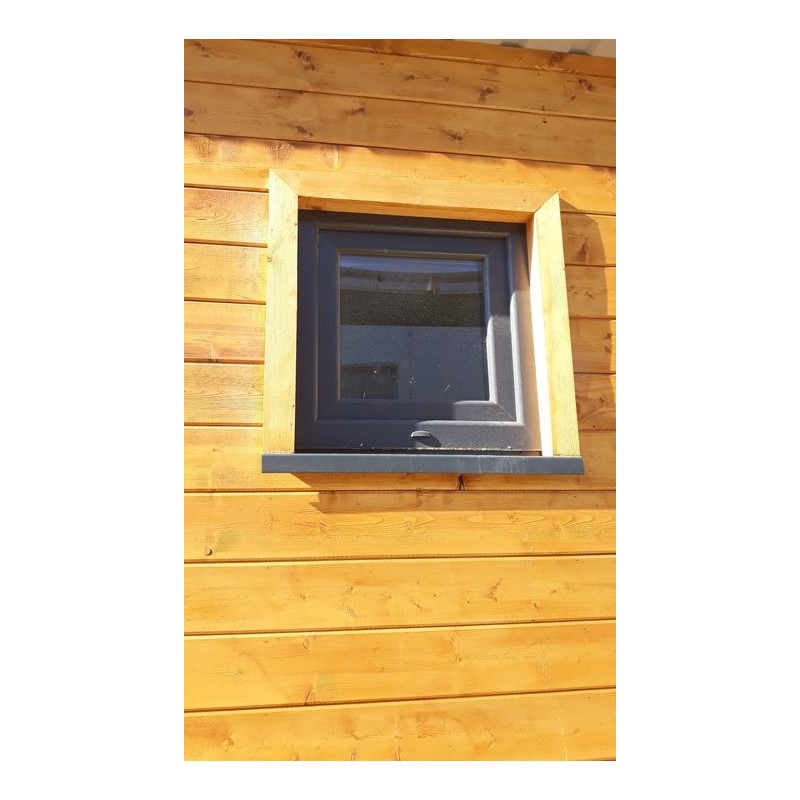

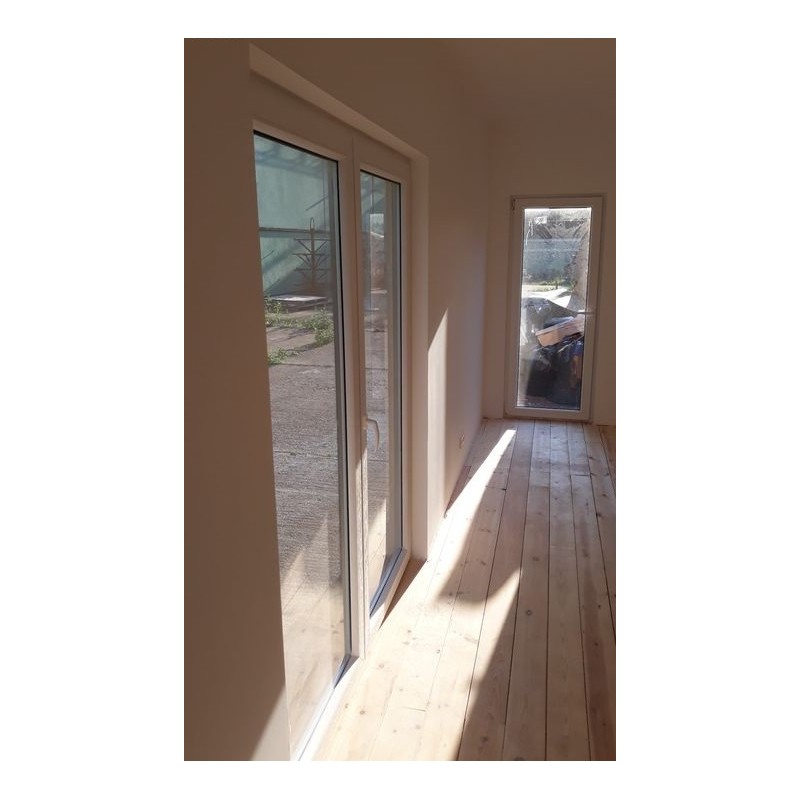

Windows: plastic, dark gray / white inside

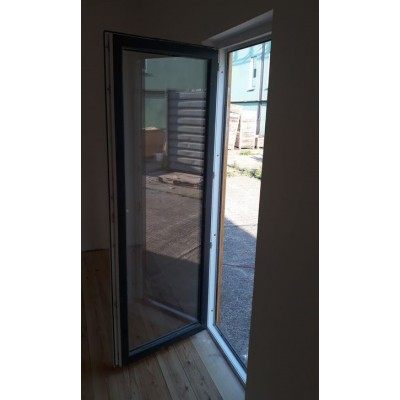

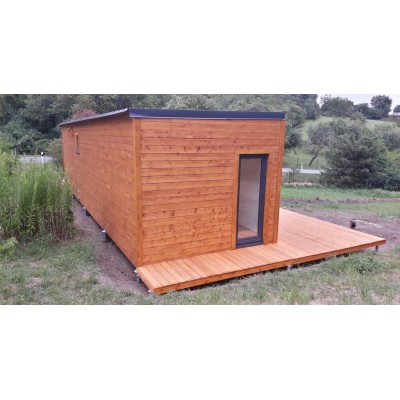

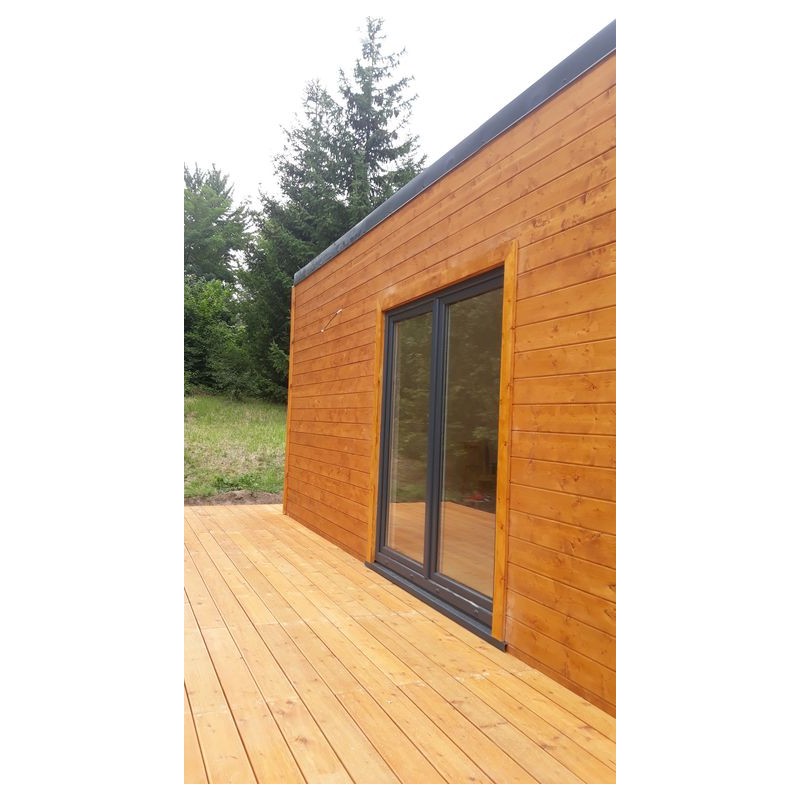

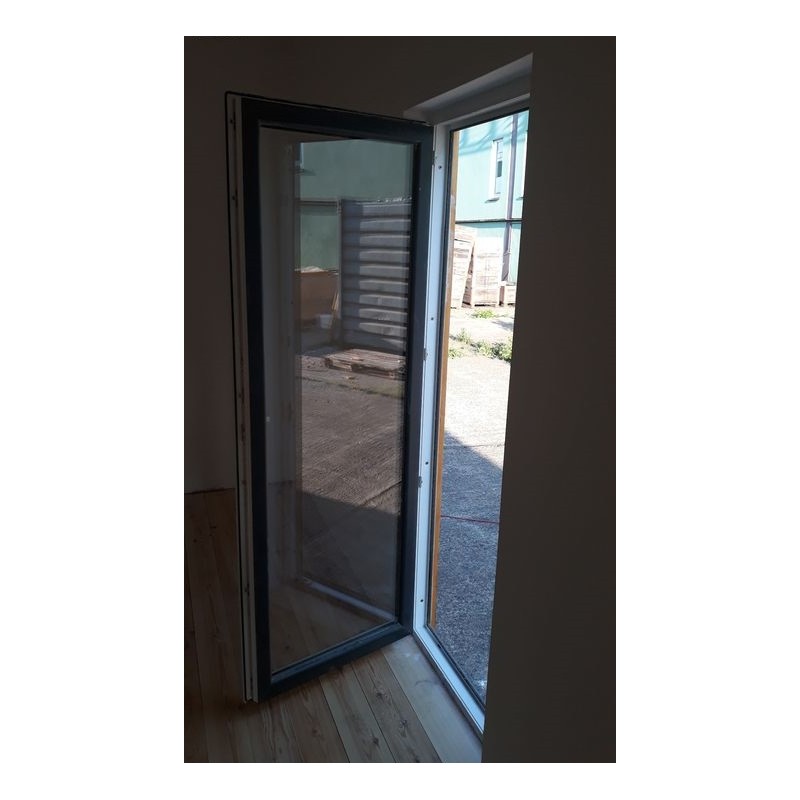

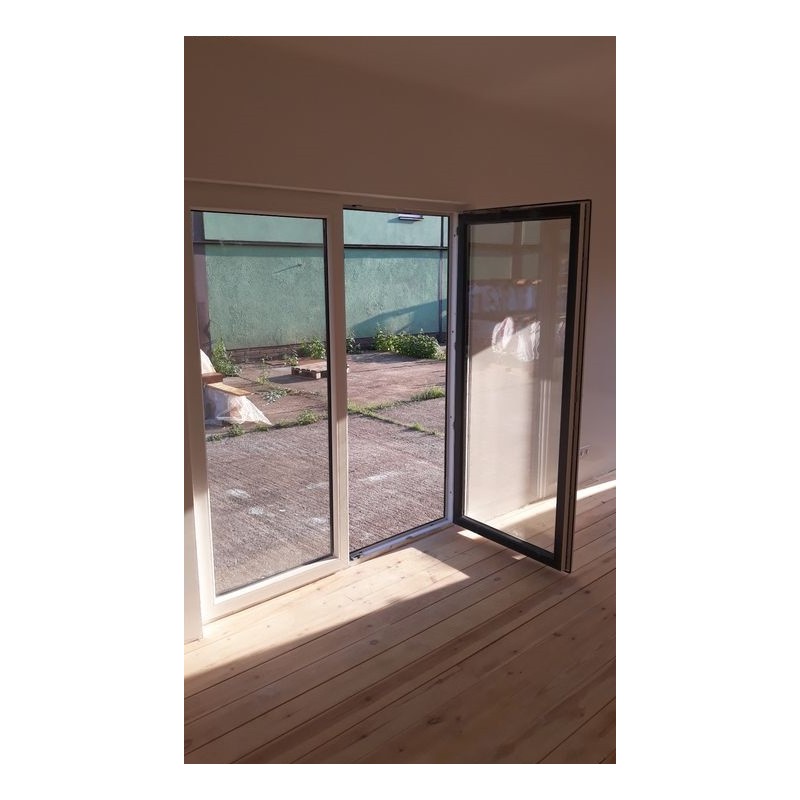

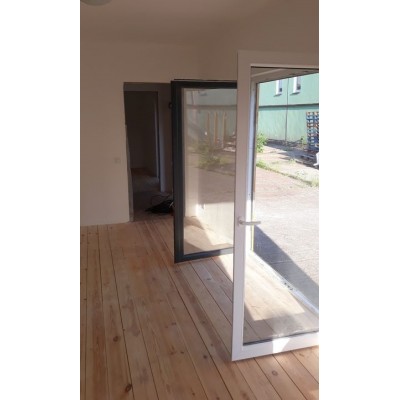

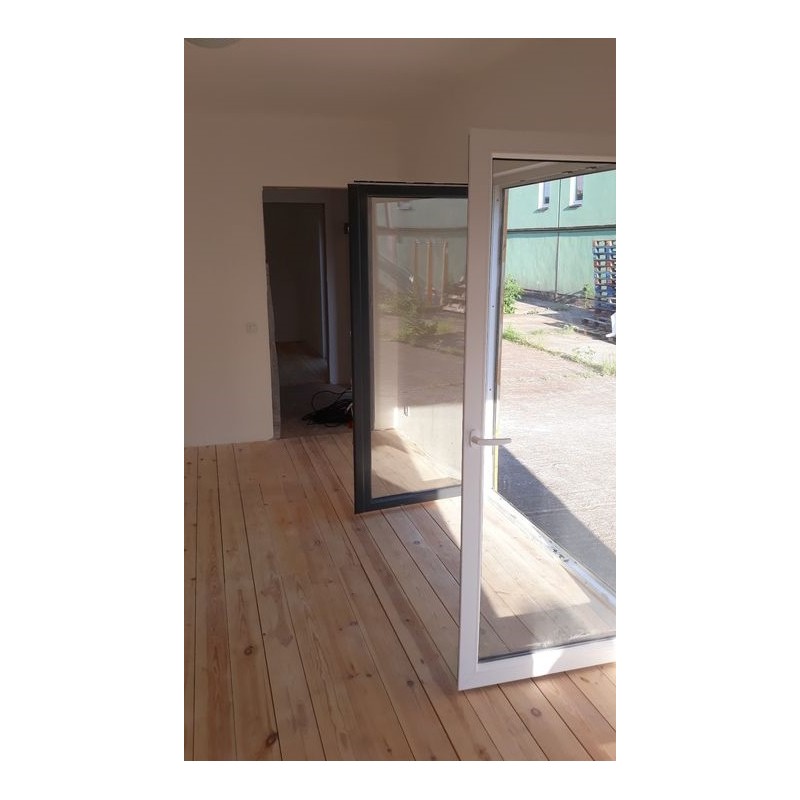

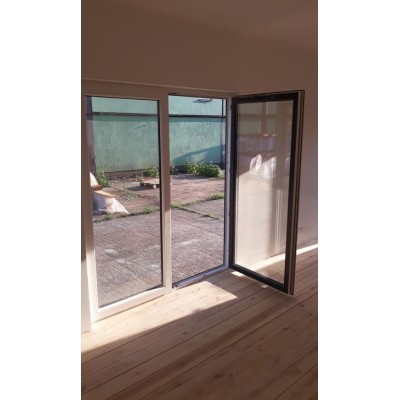

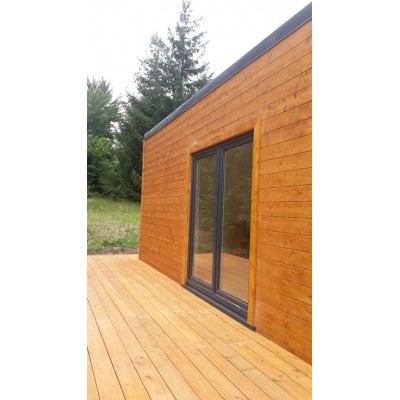

From the main room balcony door leading to the terrace
